W123 240D automatic shifts harshly: shift valve housing 722.117
A W123 240 D with automatic is no sprinter – but it should shift through its four gears cleanly and smoothly. When the transmission instead engages roughly, only changes gears at high revs or can no longer be shifted up at all, many owners first look for a new transmission. Often, though, the problem lies in the hydraulic control: in the shift valve housing. This guide shows how to narrow down the cause, what you should check beforehand and what matters when choosing the replacement part.
Symptoms
| Symptom | Likely cause |
|---|---|
| Harsh, jolting shifts | Control pressure too high – vacuum at the modulator missing or spool in the shift valve housing sticking |
| Shifts up very late or only under full load | Control-pressure cable misadjusted or worn spools/bores in the shift valve housing |
| Gear missing or transmission gets stuck in one gear | Sticking shift spool, contaminated oil, damaged sealing surfaces |
| Slipping during gear changes, revs fluctuate | Too little ATF, working pressure too low – or wear on clutches/brake bands |
| Oil stains under the transmission, ATF level dropping | Leak, not a case for the shift valve housing – see Torque converter seal ring W123/W116 or Seal ring on the speedometer drive |
Causes
The shift valve housing is the hydraulic control center of the automatic transmission. In its bores run precisely fitted spools that, depending on speed, load and control pressure, determine when which clutch or brake is pressurized with oil. The fits are tight, so the component reacts sensitively to wear debris and dirt in the oil.
After decades of operation, several factors come together: ATF that is changed too rarely loses its properties and deposits residue, clutch lining wear debris gets into the spool bores, and the running surfaces wear in. A spool that only sticks slightly is enough to noticeably change shift points and shift quality. If the housing was taken apart during earlier repairs, parts may also have been mixed up or sealing surfaces damaged.
Testing it yourself
- Check ATF level and condition: Measure with the transmission at operating temperature and the engine running. If the oil smells burnt or is very dark, you should also expect clutch wear.
- Check the vacuum line to the modulator: On the diesel, the vacuum comes from the vacuum pump. A porous or disconnected line leads to harsh shifts – this is the cheapest source of error.
- Adjust the control-pressure cable: A cable that is misadjusted or stiff shifts the shift points. Check the adjustment according to the workshop manual.
- Inspect the oil pan and filter: Drain the pan during the ATF change. Coarse metal chips or a lot of lining debris point to mechanical damage in the transmission that a new shift valve housing alone will not fix.
- Only then replace the shift valve housing: If the shifting behavior remains abnormal despite correct settings and fresh oil, replacing the valve body is the next logical step.
Solution

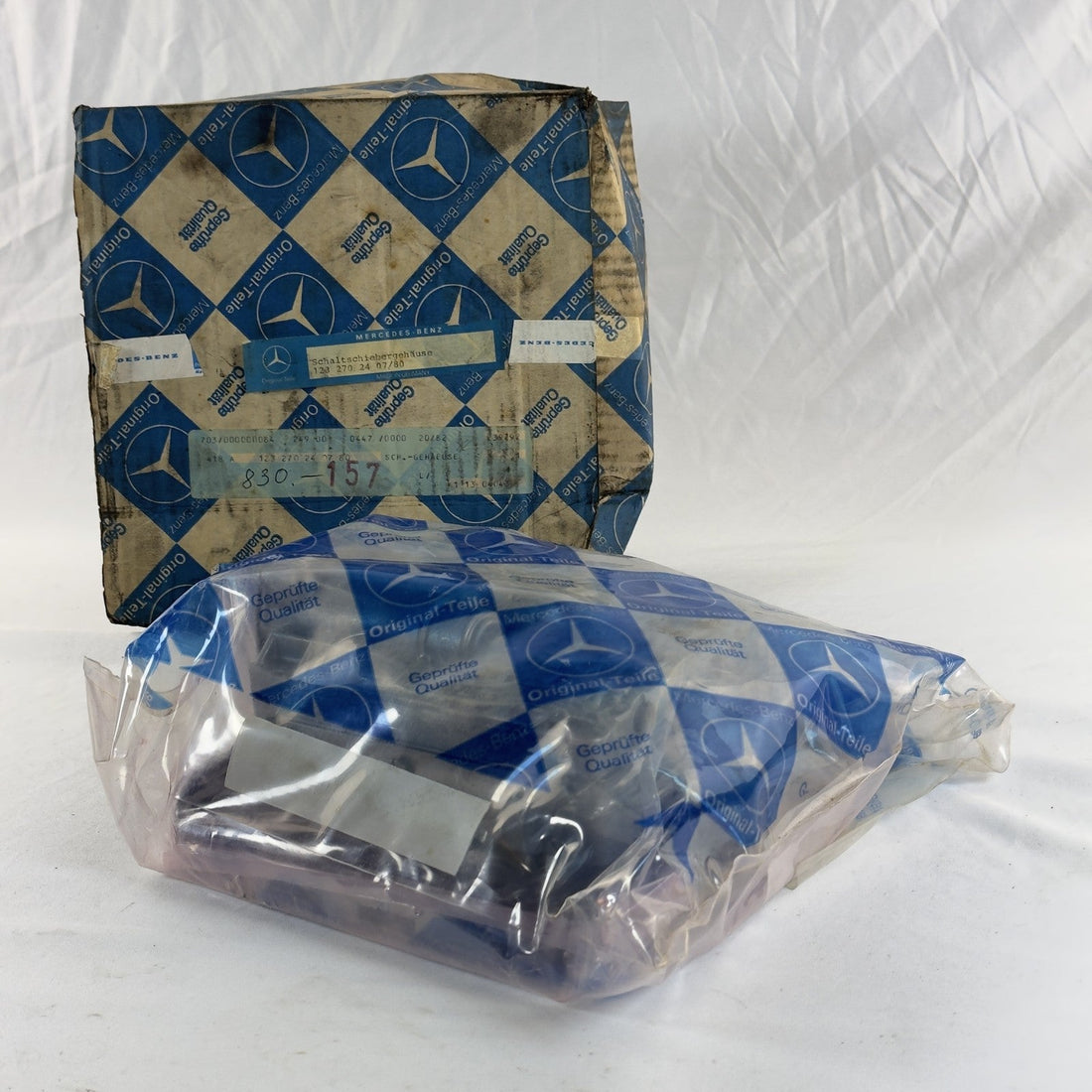

Disassembling and cleaning the old valve body is possible, but it does not remove wear on spools and bores. Replacing it with an unused genuine part is safer. We have the genuine Mercedes shift valve housing A 123 270 24 07 for the four-speed automatic transmission 722.117 in stock – a new old stock (NOS) part, unused, shrink-wrapped and in the original Mercedes box. Price: 799,00 €. It is a one-off item.
If this one-off item has already been sold, you will find more parts for your model series in the collection W123 and in the full range under All spare parts.
Compatible vehicles
| Model series | Model | Transmission |
|---|---|---|
| W123 sedan | 240 D | Automatic 722.117 |
| S123 T-model | 240 TD | Automatic 722.117 |
The decisive factor is the transmission identification number on the data plate on the transmission. For other engine variants or transmission variants, please compare the part number before buying or ask us.
FAQ
What does the shift valve housing do in the automatic transmission?
It hydraulically controls when which clutch or brake in the transmission is supplied with oil pressure. This determines shift points and shift quality.
What is the part number of the shift valve housing for the W123 240 D automatic?
For the 722.117 transmission in the W123 240 D and S123 240 TD, the part number is A 123 270 24 07.
Does the shift valve housing always have to be replaced when shifts are harsh?
No. First check the ATF level, the vacuum line to the modulator and the adjustment of the control-pressure cable. Only when these points are fine does the valve body come into question as the cause.
Is the offered part used or new?
It is a genuine Mercedes new old stock (NOS) part: unused, shrink-wrapped and in the original Mercedes box.
How much does the shift valve housing A 123 270 24 07 cost?
The NOS part costs 799,00 € from us. It is a one-off item.
